V8 Supercars

New Generation V8 Supercars

Holden

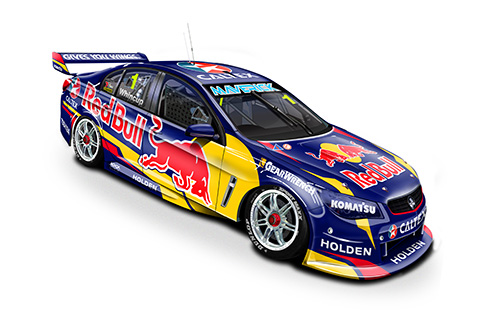

HOLDEN COMMODORE VF

RED BULL RACING AUSTRALIA

ENGINE: KRE developed 5.0 Litre V8, Holden 308 cast iron block, CNC machined aluminium heads, control V8 supercar cam shaft, aluminium dry sump

Holden

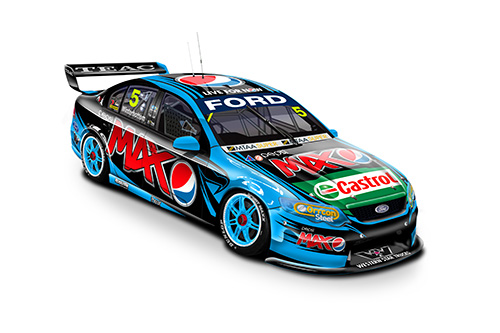

FORD FALCON FG

PEPSI MAX CREW PDR

ENGINE: FPR-developed, 5.0-litre V8 Ford with SVO cylinder iron block and aluminium heads. Category control MoTeC engine management control system

Holden

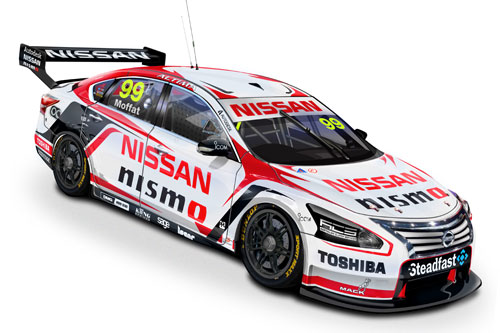

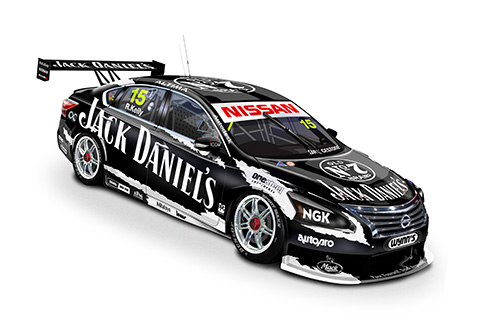

NISSAN ALTIMA

NISSAN MOTORSPORT

ENGINE: Based on the 5.6 litre quad camshaft VK56DE naturally-aspirated V8 used by the new Y63 Patrol, Dry sump lubrication system, a de-stroked crank and cylinder liners to drop displace- ment to 5.0 litres, the deletion of the factory variable valve timing system and Mahle pistons with a 10:1 compression ratio. MoteC m190 ECU

Holden

MERCEDES-BENZ E63 AMG

EREBUS MOTORSPORT V8

ENGINE: Mercedes-Benz M159, 5 litre engine, Built to V8 Supercar specifications

Holden

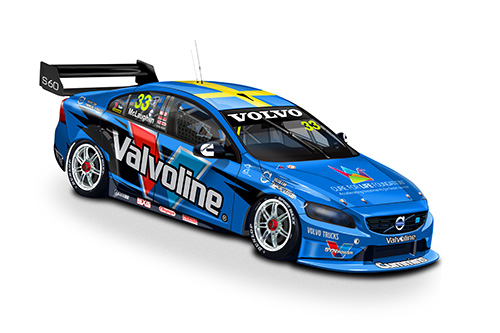

VOLVO S60 POLESTAR

VALVOLINE RACING GRM

ENGINE: B8444S Volvo 5 litre Quad Cam V8

Control V8 Supercars Specifications:

Vehicle Ford Falcon FG/FGX, Holden Commodore VF, Nissan Altima, E63 AMG Mercedes, Volvo Polestar S60
Power Estimated 635+ bhp
Electronics Control MoTeC package including M190 ECU, Power Distribution Module, driver dash.
Transmission Control Albins ST6 6 speed sequential Transaxle with integrated spool differential.
Axles Control parts from Race Products
Clutch Triple plate carbon 7 and ¼ inch
Suspension Front

Double wishbone suspension with adjustable damper and cockpit adjustable front anti-roll bar.

Rear

Control Independent rear suspension with adjustable damper and cockpit adjustable anti-roll bar.

Brakes Front

AP Racing 6 piston caliper, 395mm ventilated discs

Rear

AP Racing 4 piston caliper, 355mm ventilated discs

Wheels Control 18" x 11" forged aluminium wheel by Rimstock
Tyres Dunlop control tyre (Dry: Hard and Soft; Wet)
Steering Control Colapsible Steering column from Woodward; bespoke steering rack
Fire Extinguising System Control package from Lifeline
Windscreen Polycarbonate
Chassis and Rollcage Control design from Pace Innovations
Fuel System Premier designed Fuel Cell and Carbon Housing 112L capacity
Weight 1400KG (With Driver)
Top Speed 298+ kph
0-100km/h 3.4sec
